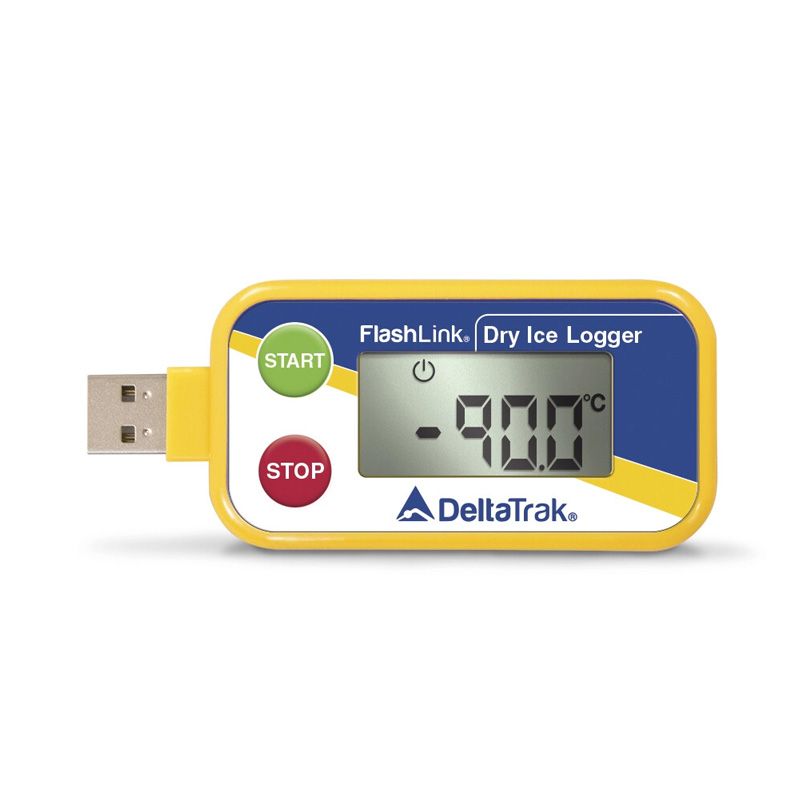

DeltaTrak.FlashLink® Dry Ice -90°C USB PDF In-Transit Logger-40801

Ideal for storage and transport with dry ice
Compact, single-use in-transit temperature logger
Onboard software automatically creates a PDF report and CSV file
Trip history statistics available on LCD
Patented Shadow Log® feature guarantees data even if the operator fails to start the unit
Direct USB connection, no cradle, reader or adapter needed
Meets IATA Dangerous Goods Regulations

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Categories: Data Loggers, DeltaTRAK, In-Transit Loggers, In-Transit PDF Loggers

描述

Applications: Monitoring and recording of vaccines, biological materials, chemicals, or dry ice shipments

DeltaTrak’s FlashLink® Dry Ice -90°C USB PDF In-Transit Loggers was designed to provide continuous temperature monitoring in the coldest environments. This device is appropriate for temperature-sensitive commodities which require extremely low temperatures during shipping – such as those utilizing dry ice.

FlashLink® Dry Ice -90°C USB PDF In-Transit Loggers are ideal for tracking pharmaceutical shipments such as vaccines or other biological materials for the Life Science industry. The loggers provide a complete record of temperature conditions during shipping and handling, helping to ensure and verify the quality and safety of these costly products.

The on-board software and USB connector allow for quick download of trip history, available in PDF and CSV report formats. Receipt of temperature history is guaranteed with DeltaTrak’s failsafe Shadow Log™ feature. This patented, cutting-edge innovation records data even if the operator fails to start the unit.

DeltaTrak.40800-datasheet.pdf

Additional information

Brand	40801
Measurement Range	-130°F to 113°F (-90°C to 45°C)
Temperature Resolution	0.1°F/°C
Accuracy	±2.7°F from -130°F to -4°F (±1.5°C from -90°C to -20°C) ±0.9°F From -4°F to 77°F (±0.5°C from -20°C to 25°C) ±2.7°F from 77°F to 113°F (±1.5°C from 25°C to 45°C)
Data Capacity	32,000 data points
Data Download Time	5 seconds
Factory Programmable Alarm Levels	High/low limits over entire temperature range
Operating Life	30-days with continuous exposure to dry ice at or below -80°C 5-days with continuous exposure at -90°C
Battery	One ½ AA, 3.6 volts
Dimensions	1.57in x 3.67in x 0.94in (40mm x 93.5mm x 24mm)
Casing	ABS plastic
Weight	1.9 oz (54 grams)
Shock Resistance	Withstands 3-foot (1 meter) drop to hard surface
Certification	Calibration traceable to NIST, ROHS Compliant, BSS 7061 Compliant, CE Mark
Display	LCD, RED LED Alarm
Storage Conditions	-4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation
PDF Standards	Complies with ISO19005-1, PDF/A, 21 CFR Part 11
System Requirements	Windows PC with current operating system, Adobe Reader
Download Requirements	Direct USB connection
/	DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system
