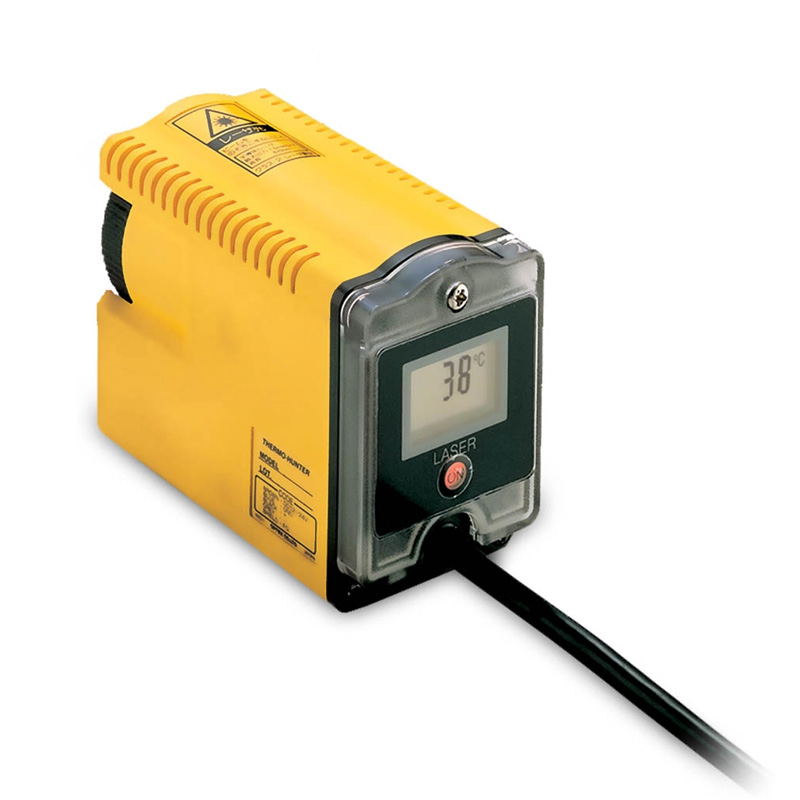

DeltaTrak.On-Line Infrared Thermometer-Model 15201, 15202, 15203, 15204

Instant non-contact surface temperature measurement
Useful with moving products or for hard to reach places
State-of-the-art infrared technology
Model 15201, FOV: Ø6 / 200mm
Model 15202, FOV: Ø6 / 200mm
Model 15203, FOV: Ø30 / 1000mm
Model 15204, FOV: Ø30 / 1000mm

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Categories: DeltaTRAK, Infrared Non-Contact Thermometers, Thermometers

描述

Applications: Production Lines, Food, Metal, Glass, Ceramics, Rubber, Synthetic Resin, Medical, Petrochemical, Automotive, Electrical, Industrial

• Instant non-contact surface temperature
measurement
• State-of-the-art infrared technology
• Coaxial Laser
• Ideal for moving objects and hard to
reach places

One of its most unique features is the E-TEACH function for automatic adjustment of the emissivity ratio. The On-Line Infrared Thermometers have two choices of analog output: TV-type (1mV/°C) which connects to such devices as a panel meter, or TA-type (4-20mA), for long distance transmissions. An optional air purge collar adapts this unit to dusty environments.

Applications range from the manufacturing of food, metal, glass, ceramics, rubber, synthetic resin, to medical, petrochemical, automotive, electrical and industrial uses.

The On-Line Infrared Thermometers, Models 15201-15204, are engineered specifically for use on the production line to measure moving objects quickly and accurately from a safe distance. These infrared thermometers measure targets within a temperature range of 32°F to 932°F (0°C to 500°C) with a 500 millisecond response, at a ±1% level of precision.

DeltaTrak.15201-datasheet.pdf

Additional information

Brand	DeltaTrak
Model	15201 15202 15203 15204
Field of View (FOV)	15201 15202 Ø6 / 200mm 15203 15204 Ø30 / 1000mm
Analog Output	15201 4-20mA 15202 1mV/°C 15203 4-20mA 15204 1mV/°C
Temperature Range	32°F to 932°F (0°C to 500°C), display -4°F to 968 °F (-20°C to 520°C)
Optics/Spectral Response	Silicon lens/Thermopile / 8 to 14 µm
Accuracy	±1% of reading value or ±2°C, ± 1 digit, whichever is larger
Display Resolution	1°F/ °C selectable
Output Resolution	0.2°F/°C
Response Speed	Less than 1 second (100ms/90%)
Sighting Method	Coaxial laser marker
Repeatability	±2°F (±1°C) of reading value
Emissivity	0.10 to 1.20 (0.01/1step)
Environmental Humidity	35 to 85% RH (without dew condensation)
Ambient Temperature	32°F to 122°F (0°C to 50°C)
Waterproof Rating	IP65
Power Supply	DC12 to 24V±10% / MAX 150mA
Storage Conditions	14°F to 140°F (-10 to 60°C)
Vibration Resistance	3G (20 to 50Hz, according to JIS CO 911)
Weight	12.35 oz. (350g)
Optional Accessory	Air purge collar (order Part No. 15205
