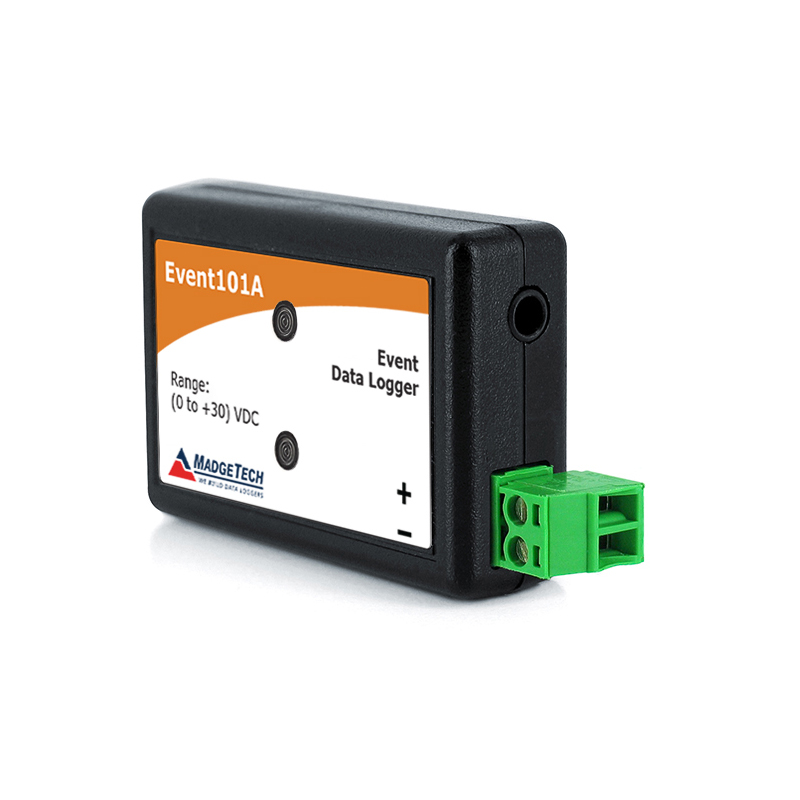

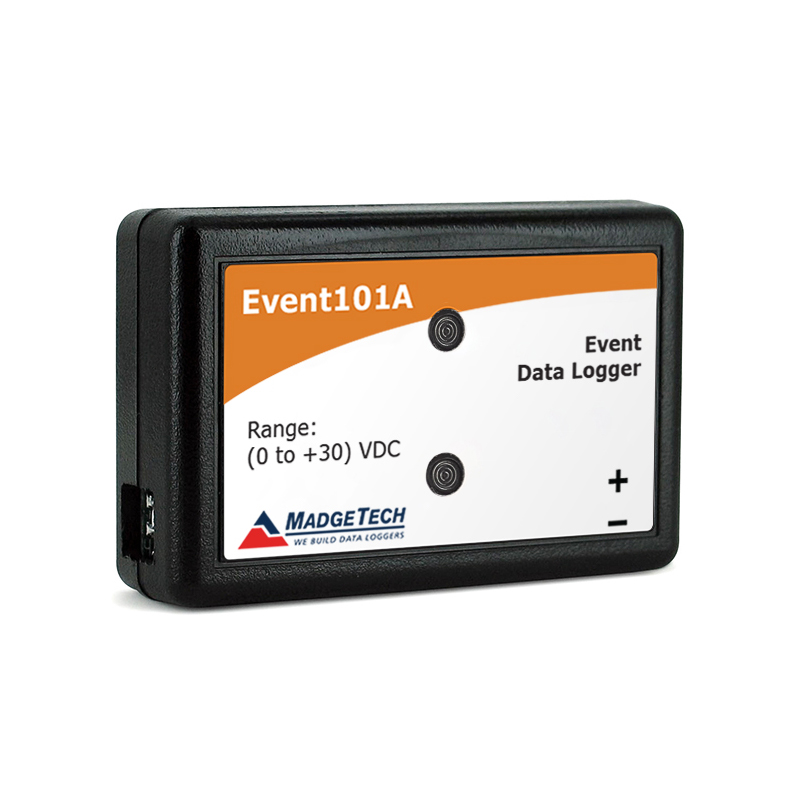

MADGETECH is a compact data logger that records occurrences of a specific event. Event101A
Key Features:
- Compact Size
- 10-Year Battery Life
- Input Range up to 30 V
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
描述
The Event101A is a compact data logger that monitors and records the occurrences of a specific event. With a 10-year battery life, the Event101A is ideal for long-term field studies that focus on when a specific event happens and for how long.
This device offers an input range of up to 30 V with a storage capacity up to 838,041 readings. The Event101A can be configured to utilize the memory wrap option to extend deployment capability or programmed to start at a specified date and time up to 18 months in advance.
The Event101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-Event101A Specification Sheet.pdf
MADGETECH-Event101A Product User Guide.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | EVENT101A |
| Memory | 465,578 readings |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| LED Indicators | Red and Green |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Event | / |
| Input Range | 0 to 30 V |
| Input Low | <0.4 V |
| Input High | >2.8 V |
| Internal Weak Pull-up | <60 μA |
| Input Impedance | 60000 Ω |
| Minimum Input Active (Low) | 10 Microseconds |
