MADGETECH is a compact, humidity and ambient temperature data logger. RHTemp101A
Key Features:
- Compact Size
- 10-Year Battery Life
- Programmable Alarm Limits
- Precision RTD Sensing Element
- Memory Capacity of 1,000,000+ Readings
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
描述

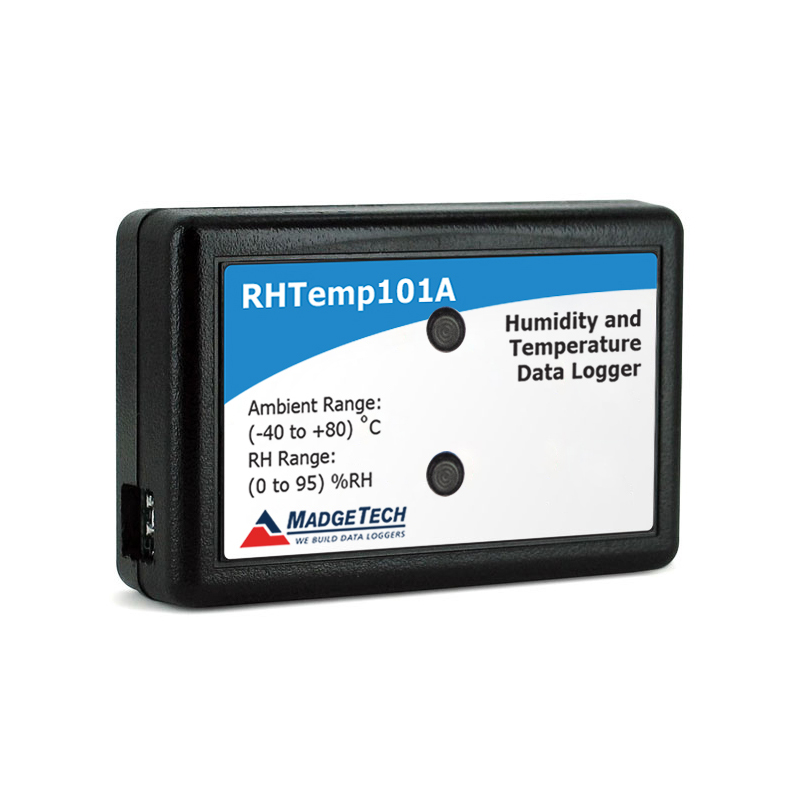

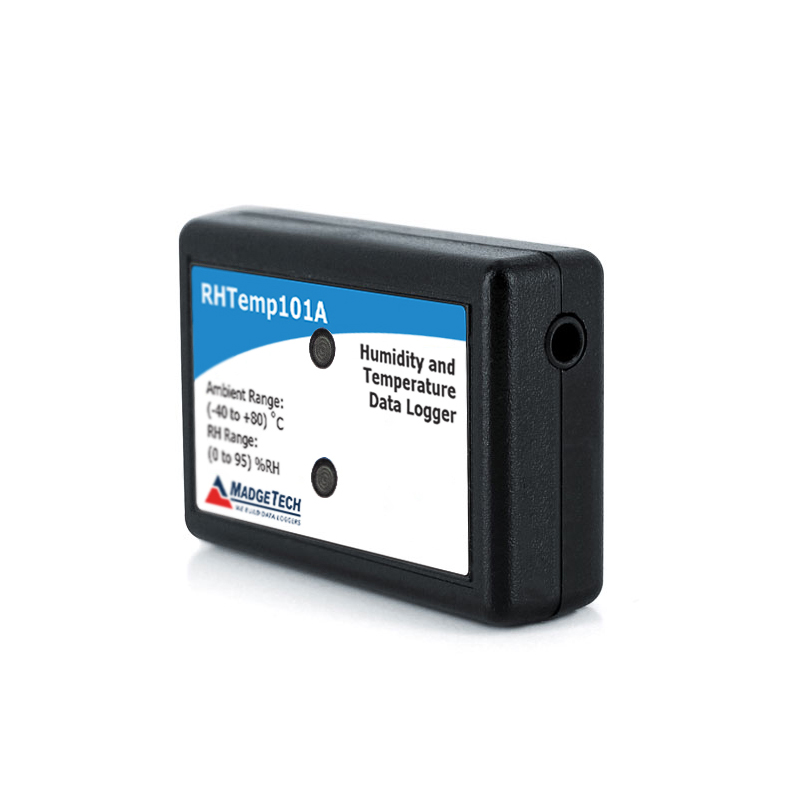

The RHTemp101A is a compact, humidity and ambient temperature data logger. This device can measure and record temperatures from -40 °C to 80 °C (-40 °F to +176 °F) and humidity from 0 %RH to 95 %RH.
The RHTemp101A features user-specified high/low alarm limits and can even be programmed to start up to 18 months in advance. With a 10-year battery life and the ability to store up to 1,047,552 time and date stamped readings, the RHTemp101A is perfect for long-term studies.
The RHTemp101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MADGETECH-LynxPro-RHTemp101A Specification Sheet.pdf
Additional information
| Brand | MADGETECH |
|---|---|
| Model | RHTEMP101A |
| Memory | 1,047,552 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Alarm | Yes, Humidity |
| Baud Rate | 115,200 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | Polycarbonate |
| Dimensions | 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Precision RTD Element |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) from 0 °C to 55 °C (+32 °F to +131 °F) |
| Humidity | / |
| Humidity Sensor | Internal semiconductor |
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | ±3.0 %RH |
| Humidity Accuracy Range | 25 % RH to 75 % RH, 20 °C to 40 °C, Hysteresis Error 1 % Typ 3 % Max |
| RH Units | %RH, dew pt., water vapor, concentration (mg/hl) |
