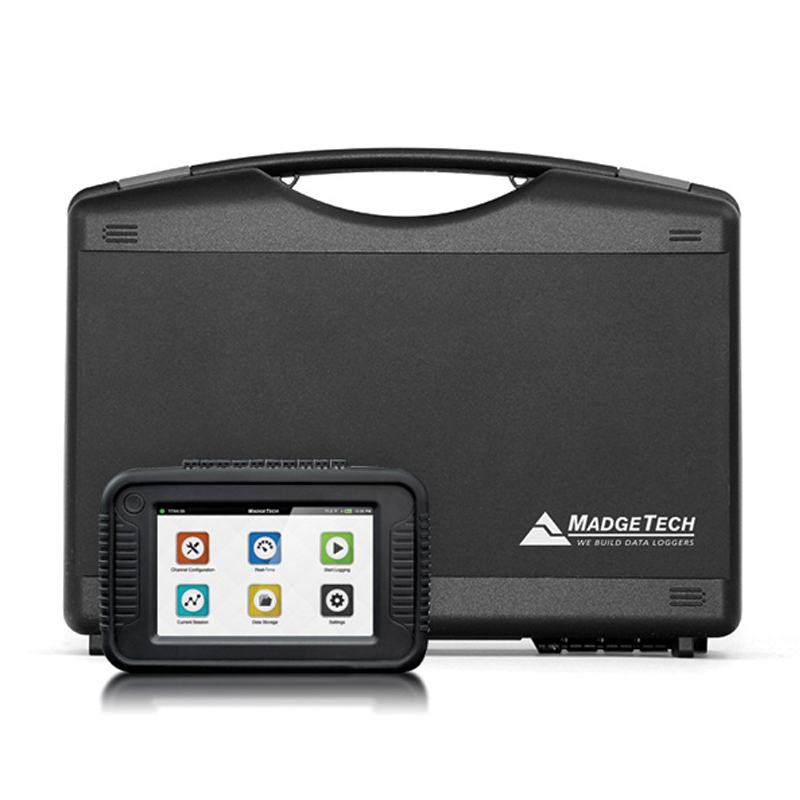

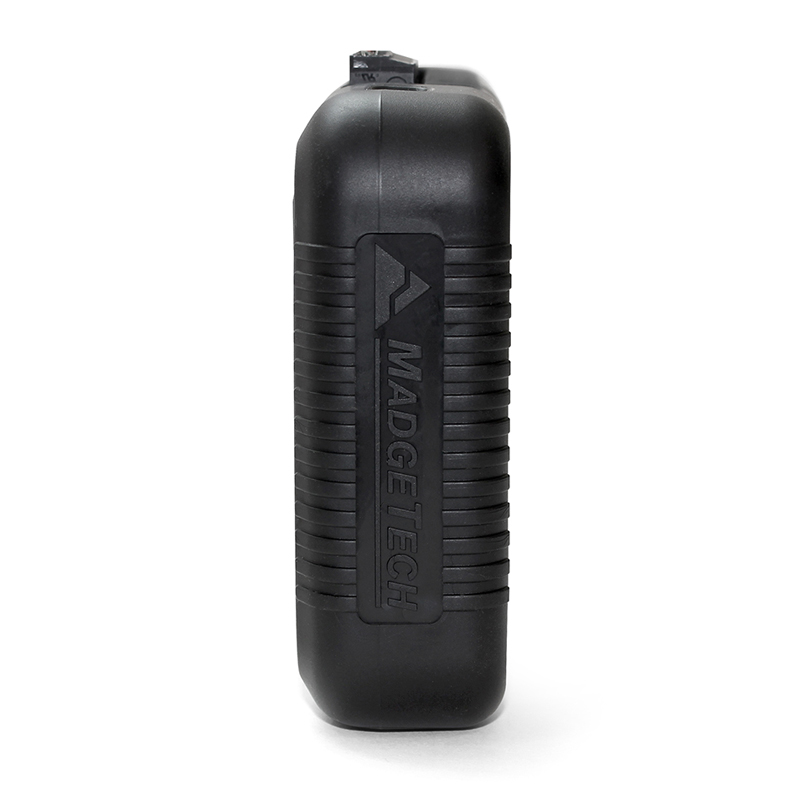

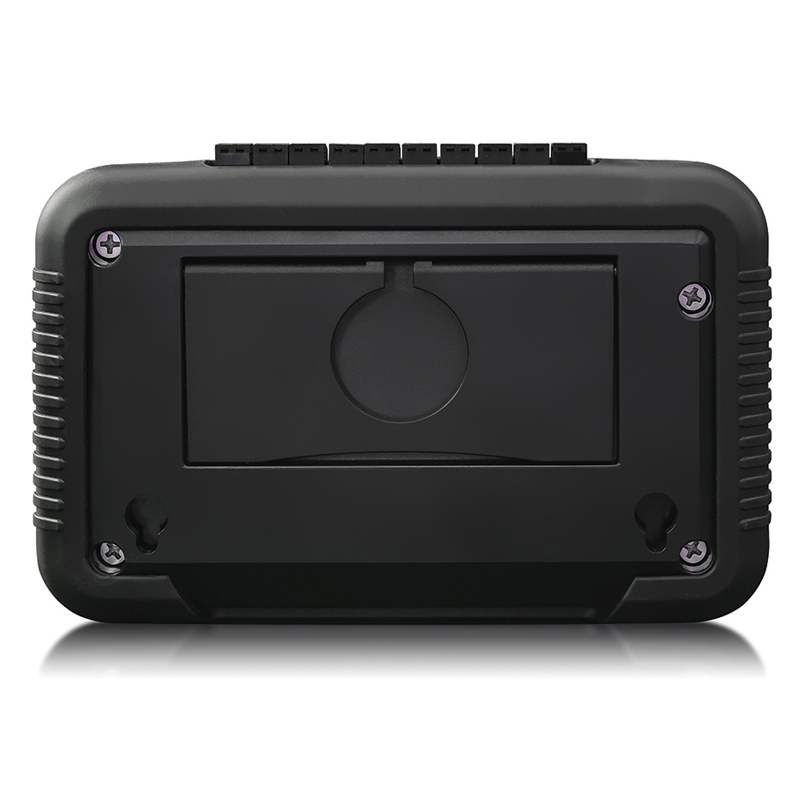

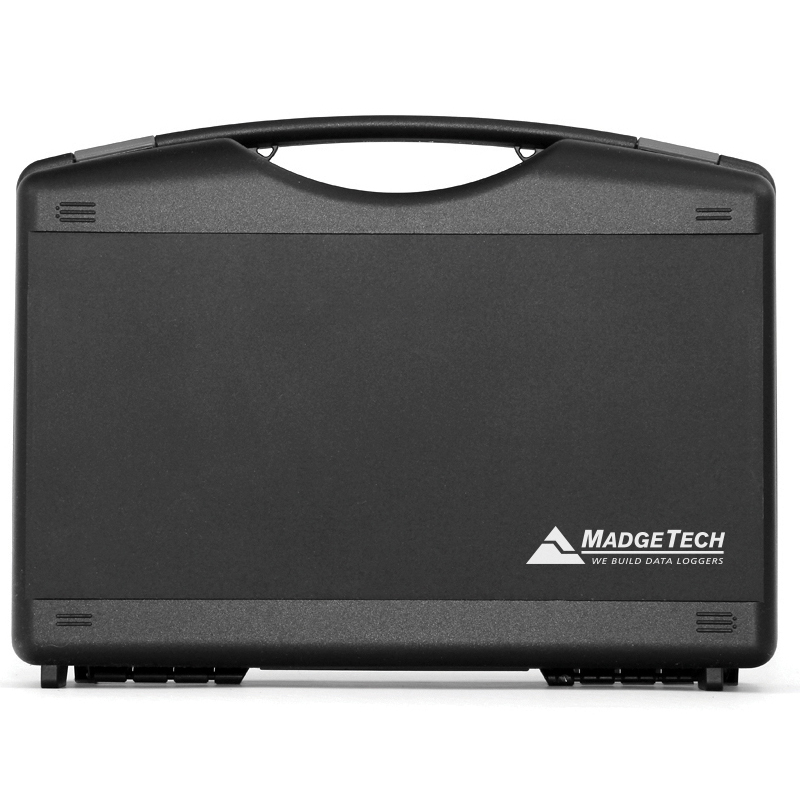

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8 - Image 2

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8 - Image 3

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8 - Image 4

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8 - Image 5

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8 - Image 6

MADGETECH is a state-of-the-art 8-channel data collection system.Titan S8

Key Features:

WiFi & Ethernet Enabled

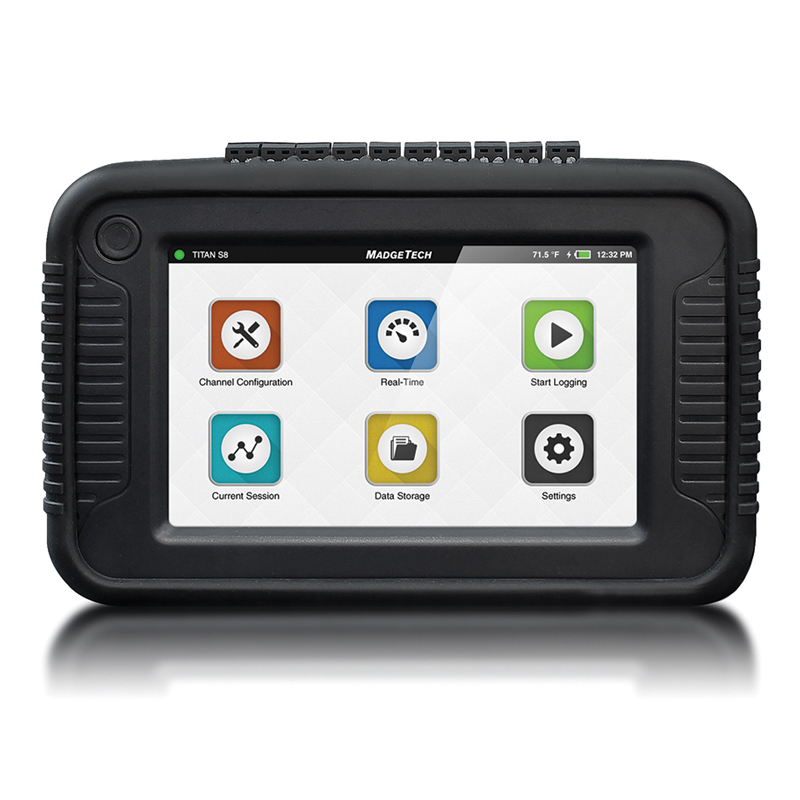

Large Touchscreen Control
Independent Channel Configuration

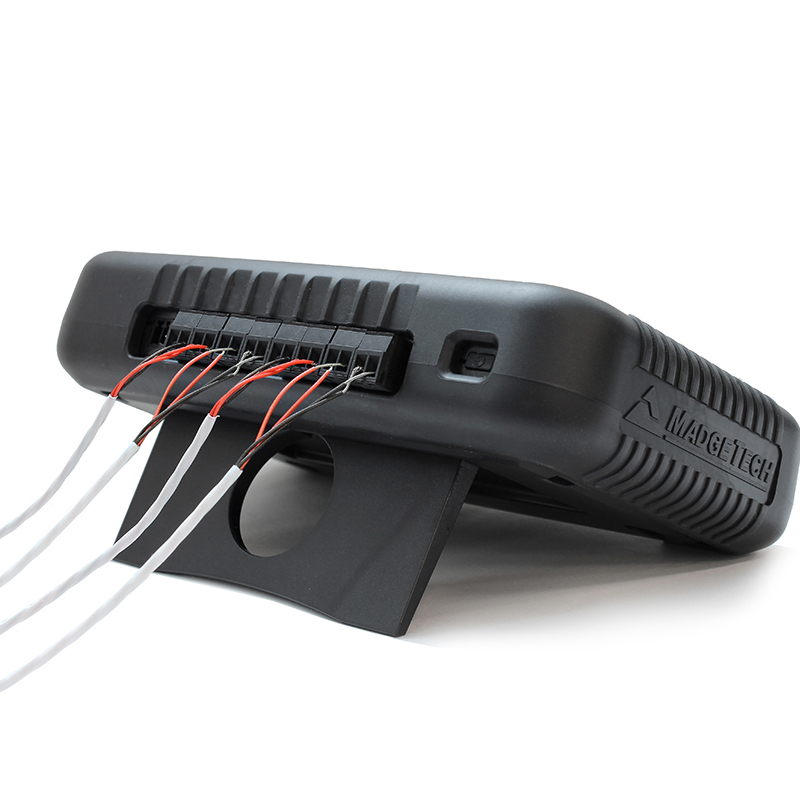

Directly Accepts Thermocouple, RTD & Thermistor Probes

Free shipping on orders over $50!

Satisfaction Guaranteed
No Hassle Refunds
Secure Payments

GUARANTEED SAFE CHECKOUT

Category: MADGETECH

描述

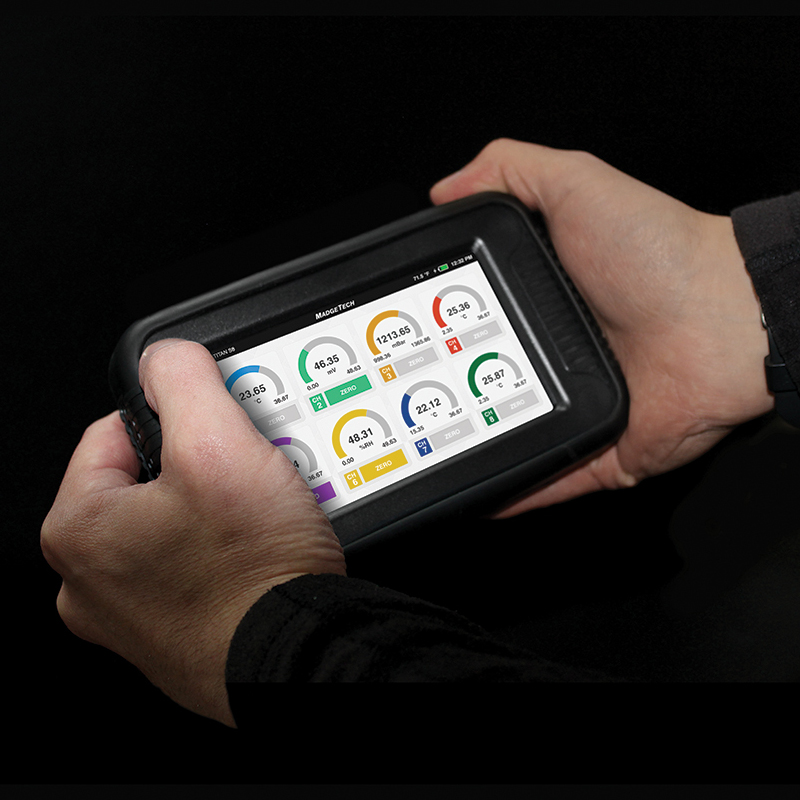

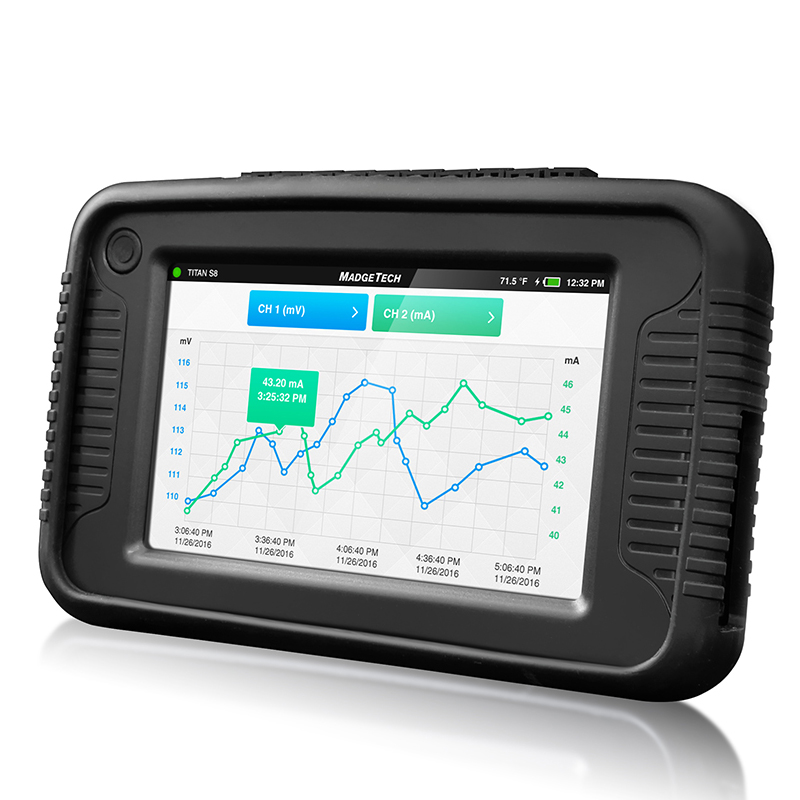

The Titan S8 is an 8-channel, remote access data acquisition logger with a full-color, 5 inch touchscreen interface for real-time monitoring.

This versatile device supports thermocouple, RTD and thermistor probes to measure current, voltage, temperature and pulse. The Titan S8 is an all-in-one solution, allowing users to view all 8 channels simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8 can store up to 5,000,000 readings which can be downloaded to a USB memory device and uploaded to the MadgeTech 4 Software for further analysis.

The handheld Titan S8 provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.

MADGETECH-Titan S8.pdf

MADGETECH-Titan S8-datasheet.pdf

Additional information

Brand	MADGETECH
Model	TITAN S8
Channels	8 channels (Temperature, Current, Frequency, Voltage, Pulse)
Battery Life	10 hours continuous use
Material	PC / ABS Enclosure, TPE Protective Boot
Dimensions	6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen.
IP Rating	IP20
