MADGETECH is a submersible, pressure and high temperature data logger.PRTEMP140
Key Features:
- Submersible
- 2.5 Inches Tall
- Available in Flush or NPT Pressure Port Top
Availability: 5-7 Business Days
Free shipping on orders over $50!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
描述

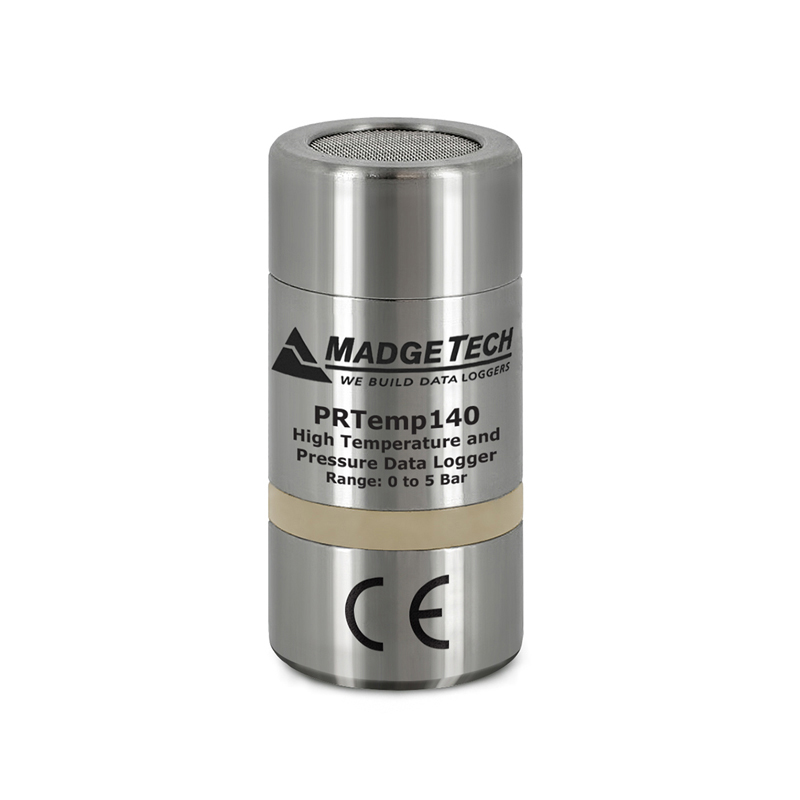

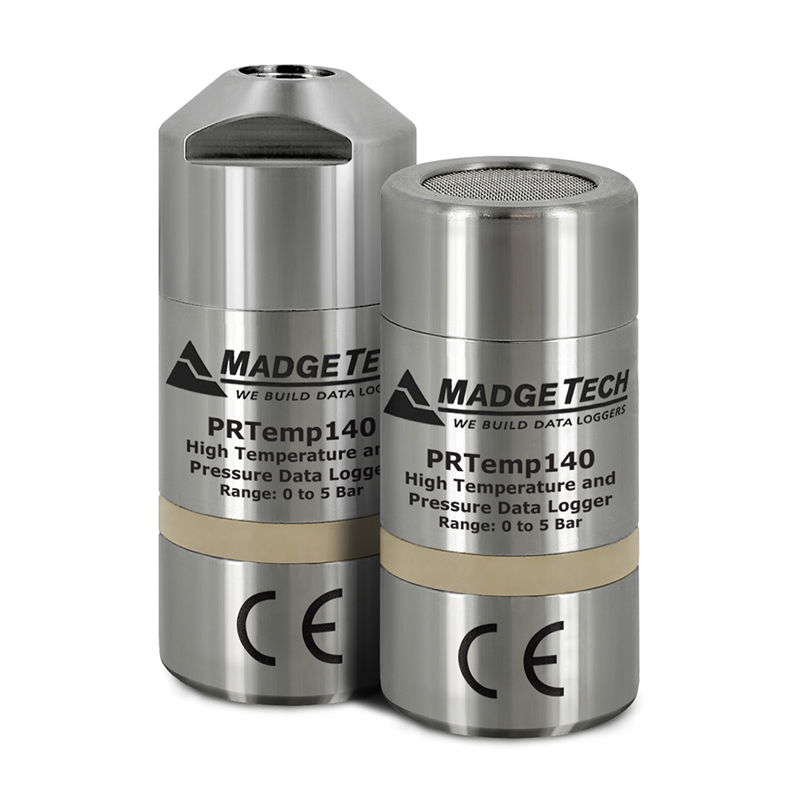

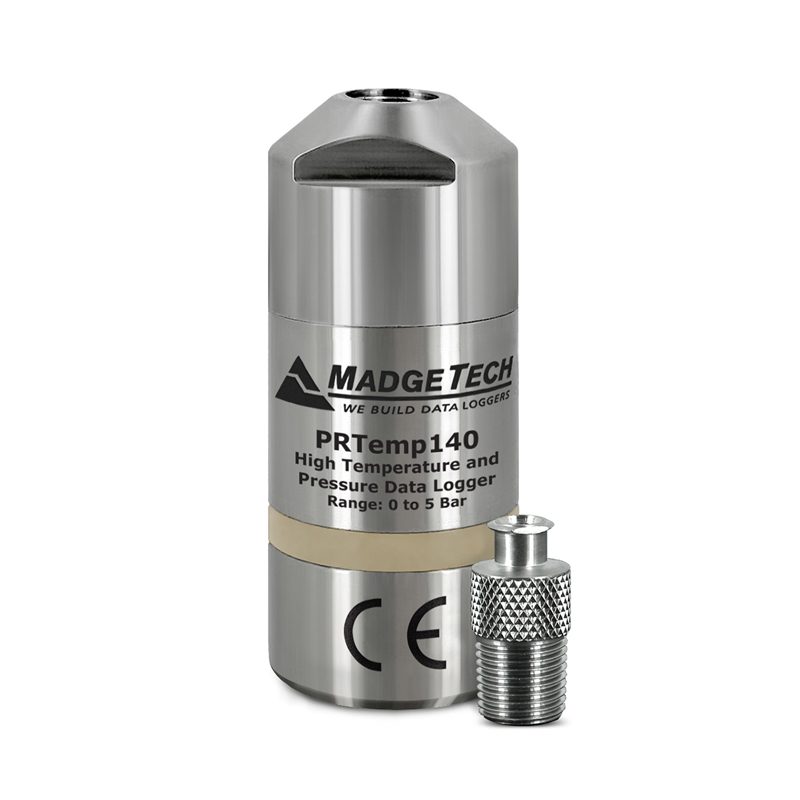

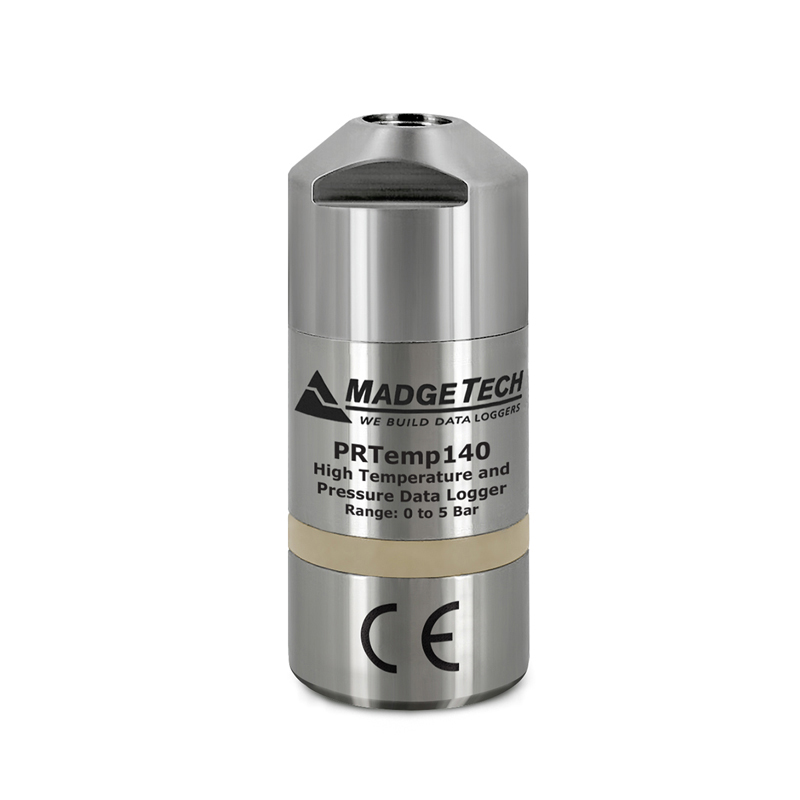

The PRTemp140 is a submersible, pressure and high temperature data logger. Available with a flush top or 1/8-27 NPT top model, this device stands less than 2.5 in. high, allowing it to fit discretely inside small spaces.
Additional information
| Brand | MADGETECH |
|---|---|
| Model | PRTEMP140 |
| Memory | 16,128 readings (all channels enabled) |
| Reading Rate | 1 second to once every 24 hours, selectable in software |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate) Note: Fast reading intervals and extreme temperatures will shorten the battery life substantially |
| Material | 316 Stainless Steel, Radel |
| Dimensions | Flush Top: 1.98 in x 0.97 in x 0.97 in (50.2 mm x 24.6 mm x 24.6 mm) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -20 °C to +140 °C (-4 °F to +284 °F), 0 %RH to 100 %RH |
| Approvals | CE |
| Temperature | / |
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -20 °C to +140 °C (-4 °F to +284 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.1 °C from +20 °C to +140 °C (68 °F to 284 °F) |
| Pressure | / |
| Pressure Sensor | Semiconductor Strain Gauge |
| Pressure Range | 0 to 5 Bar (0 to 72.5 PSIA) |
| Pressure Resolution | 0.0001 bar |
| Pressure Calibrated Accuracy | ±0.03 bar (±0.435 PSI) from +20 °C to +140 °C (+68 °F to +284 °F) |
