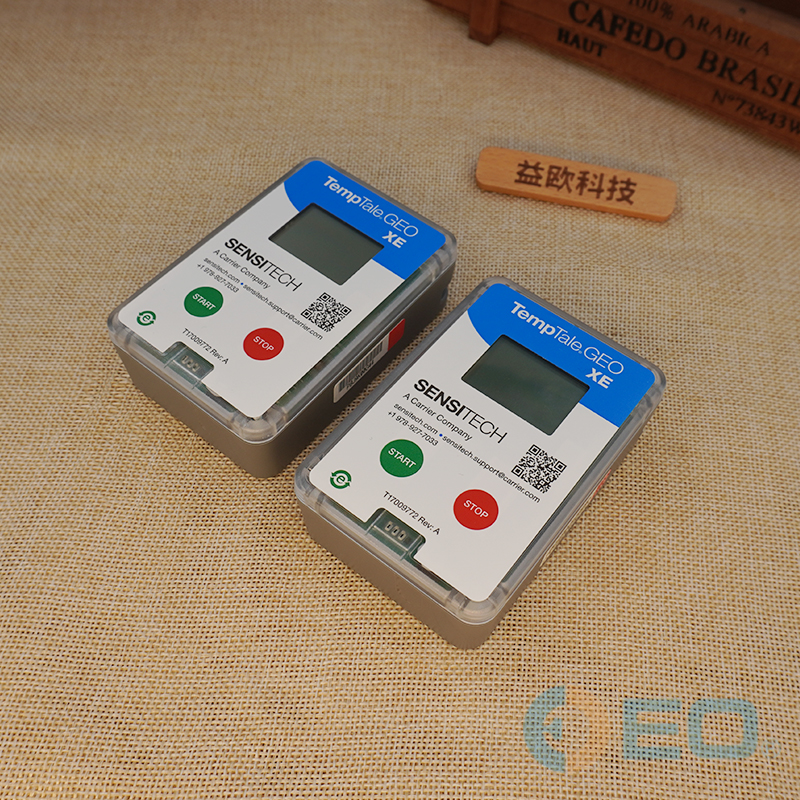

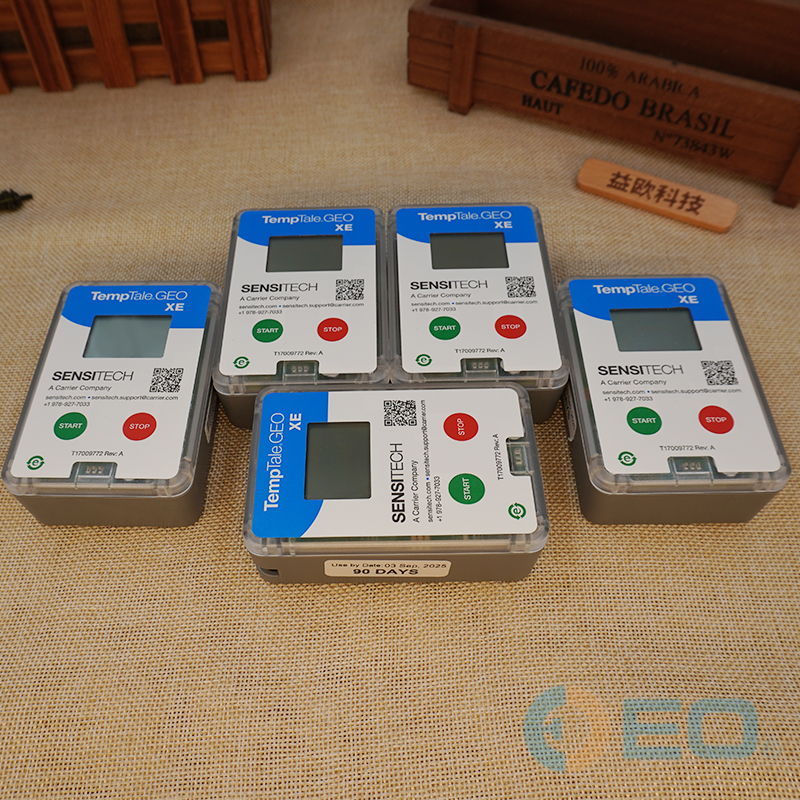

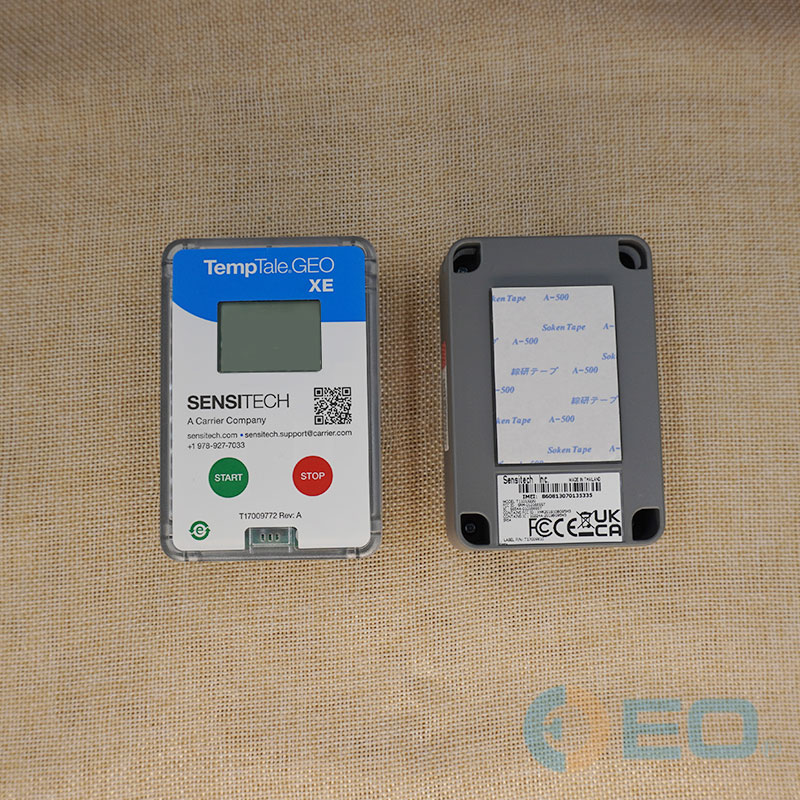

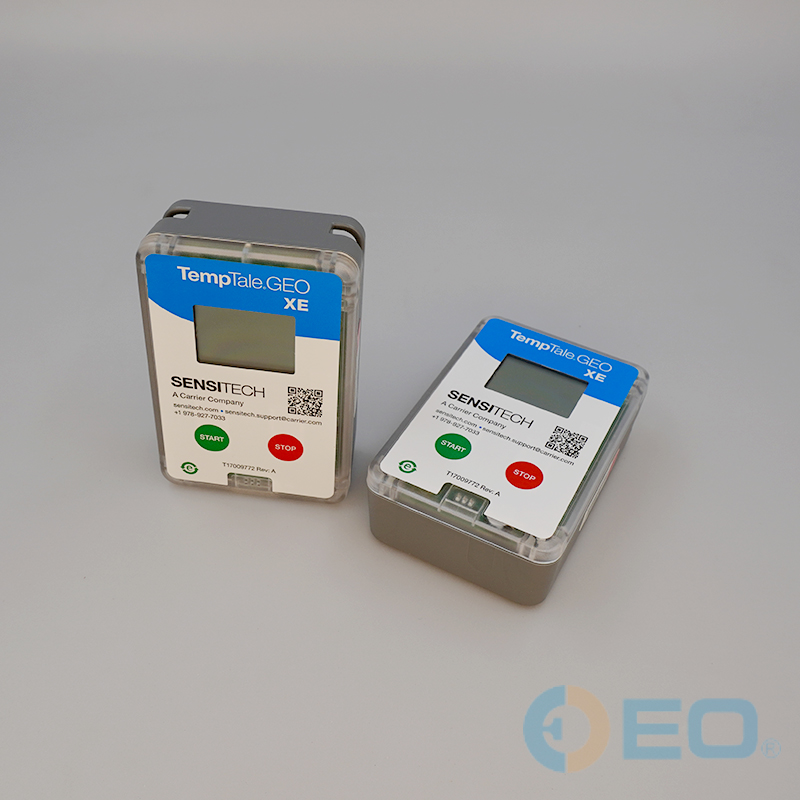

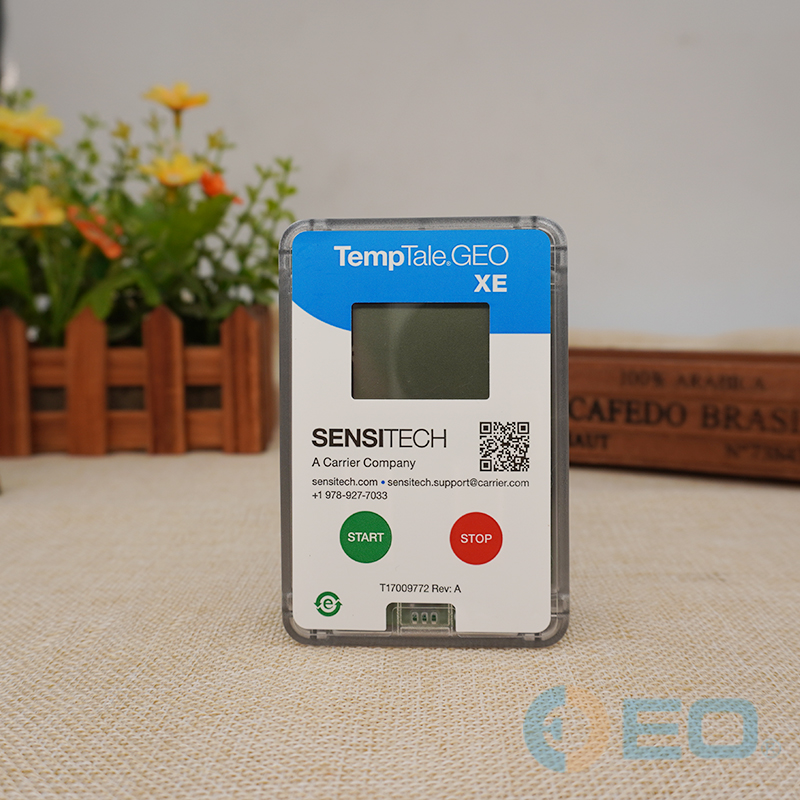

SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE
SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE - Image 2
SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE - Image 3
SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE - Image 4
SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE - Image 5

SENSITECH Real-time Temperature, Light, Humidity and Position Monitor TempTale ® GEO XE

SensiWatch® Platform provides end-to-end visibility and alerts while in-transit. Take advantage of real-time data and notifications:

• Delays and missed flights

• Port congestion, extended dwell times

• Proximity of arrival

• Trailer door opened

• Early warning temperature trending beyond limits

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Categories: ,

描述

Intelligent Shipment Visibility for Extended Trips

The TempTale® GEO XE enables global, real-time shipment location tracking with validated, GxP-compliant temperature
monitoring for longer trips. Tailored for life sciences, the TempTale GEO XE solution proactively notifies logistics and partners,
providing in-transit visibility and alerts, speeding product release by automating data sent to the cloud.
The TempTale GEO XE solution adds intelligent visibility to your shipments. It enables validated, GxP-compliant shipment accept/
reject decisions. Built-in battery management simplifies device management. The solution provides crucial insights into what
occurred during shipment to support root cause analysis.

Key Features and Benefits

• Small IoT device fits most packaging

• Arrives fully charged and ready to use

• Immediate, real-time temperature, light, humidity, and locationnotifications, with option to add control tower escalation services

• Optimized for extended trips up to 120 days

• Supports frozen shipment monitoring to -30°C

• Communicates as frequently as every 15 minutes and immediatelyupon alarm

• Global cellular communication coverage with added Wi-Fi locatesfor precise proof of delivery

• Lithium metal battery (no IATA dangerous goods declarationif < 3 devices in consignment)

• No worries about device battery life

• Up to 6 hardware alarms and up to 12 software alarmsto speed product release

• Each device is individually 3-point NIST calibrated before every use,with a Certificate of Calibration

• Failsafe, secondary download with Bluetooth and the TempTale App(iOS and Android)

Additional information

brand

SENSITECH
Model

TempTale® GEO XE
Recording Option

Single Use (for Shippers), Sensitech Manages Multiple Use Device Renewal Program
Certified Modes of Transport

Air, Ocean, Road, Rail (Airline approvals upon request)
Sensor Types

Temperature, Humidity, Light
Temperature Measurement Range

-30°C to +55°C (For colder temps see probed, TempTale GEO XEP to -95°C)
Temperature Accuracy Range

±0.5°C from -10°C to +45°C
±1.0°C from -30°C to -10°C; ±1.0°C from +45°C to +55°C
Humidity Measurement Range

10% to 90% RH, non-condensing
Humidity Accuracy Range

Typical ±3.0% / Max ±5.0% RH from 10% to 90% RH
Alarms

• Up to 6 hardware (Single Temp Limit, Temp Range, Dual Temp Range, MKT, Duration) and up to 12 software
alarms; alarm is triggered when temperature exceeds set limits
• Single-Event (Continuous) or Cumulative
Temperature Accuracy Certification

3-point NIST® Traceable per monitor before each use, Certificate of Calibration with order,
by Request or Calibration Portal
Temperature Sensor Sample Interval

Programmable from 5 minutes to 2 hours
Temperature Measurement Responsiveness

Meets the requirements of USP <1079.3> and EN12830
Start Up Delay

0 minutes to 24 hours
Light Sensor Range

0-100%
Communication

LTE CAT-M1 (for 4G/5G networks) with 2G fallback
Memory

16,000 data points per sensor
Battery Type

Lithium metal (non-replaceable, < 2 grams lithium) (no IATA dangerous goods label or declaration
if <3 devices in a consignment)
Shelf Life & Sustainability

• 6-month shelf life (press start by use by date, shipper operations simple)
• Sensitech manages renewal of returned devices for reuse. No lost device fees.
Operating Life

Up to 120 days, with communication reporting interval from 15 minutes to 360 minutes; Configurable based
on total days for shipment. (For shorter shipments see TempTale GEO X for up to 60 days)
Dimensions and Weight

91 mm x 61 mm x 31 mm; 121 grams
Environmental Rating

IP64
Regulatory

FCC, CE, IC, RTCA – D016ØG, 3-Point NIST Traceable Calibration (each device individually calibrated)
Display Indicators

LCD screen icons: Running, Started, Stopped, Alarm Status, Marked Event, Start-up Delay, Uploading to Cloud,
Upload to Cloud Complete, Final Cloud Upload requires APP, Bluetooth On
Secondary Download

TempTale® Mobile App (iOS 15+—iPhone 7 or higher, Android 12+—Samsung Galaxy S8+ or Note 8+,
Bluetooth Low Energy)
Software Interfaces

SensiWatch® Platform; email notifications; ColdStream® Select 2.2+ (designed to meet FDA 21 CFR Part 11
and EC Annex 11); TempTale® Mobile App 3.1+; TempTale® Manager Desktop 9.1+
Cold Chain PDF Report

Secure PDF generated by cloud software
Minimum System Requirements

Windows 8.1+; Mac OSX 10.12+; Browsers: Google Chrome 83+, Microsoft Edge 83+, Safari 14+;
Adobe® Reader 9.0+
