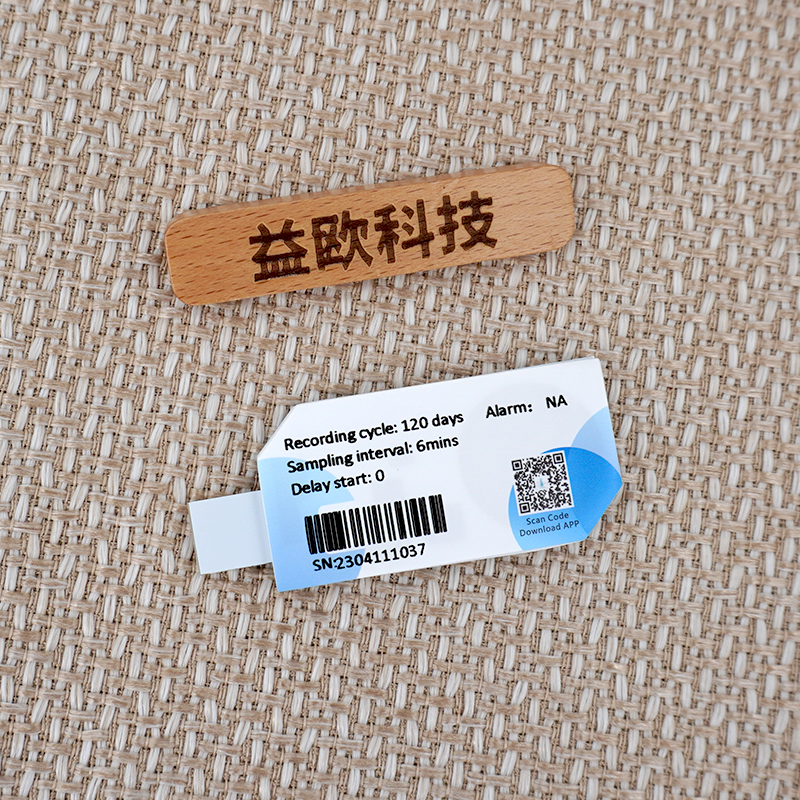

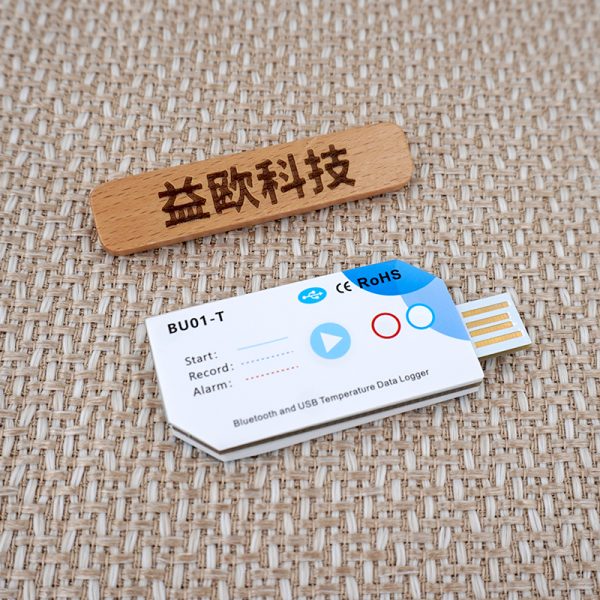

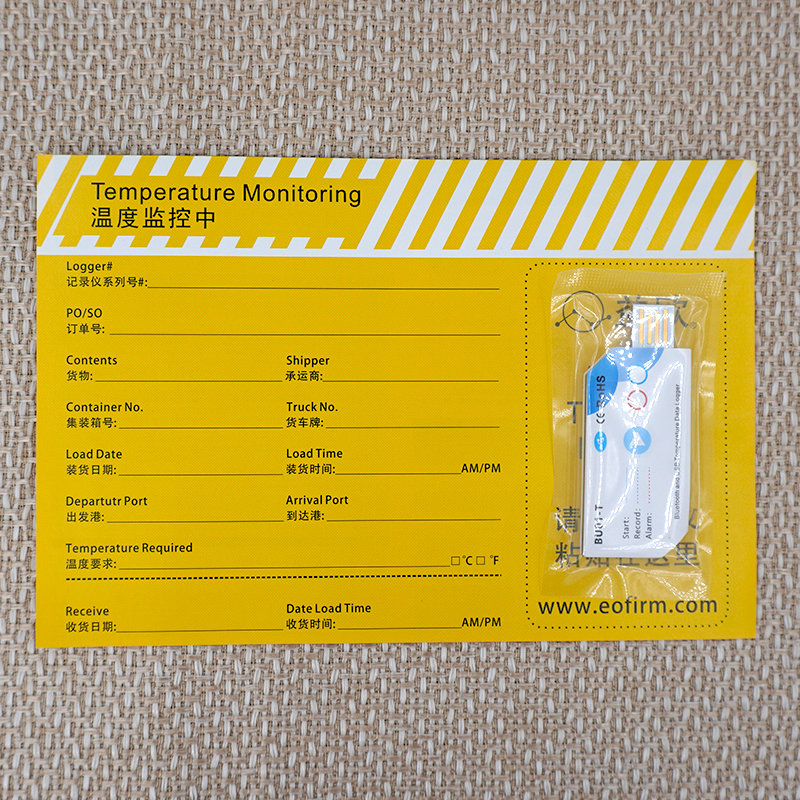

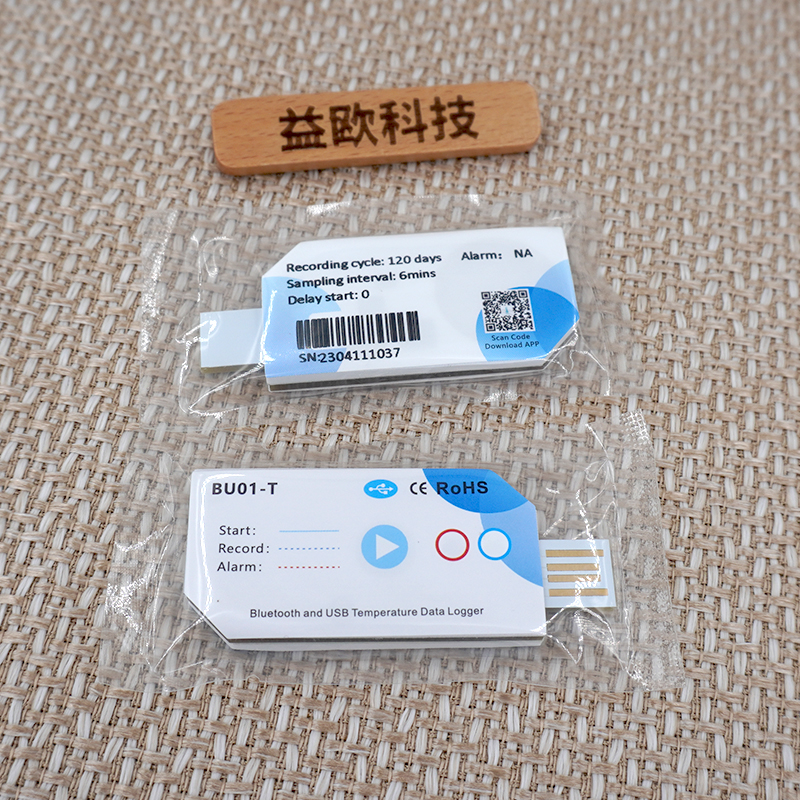

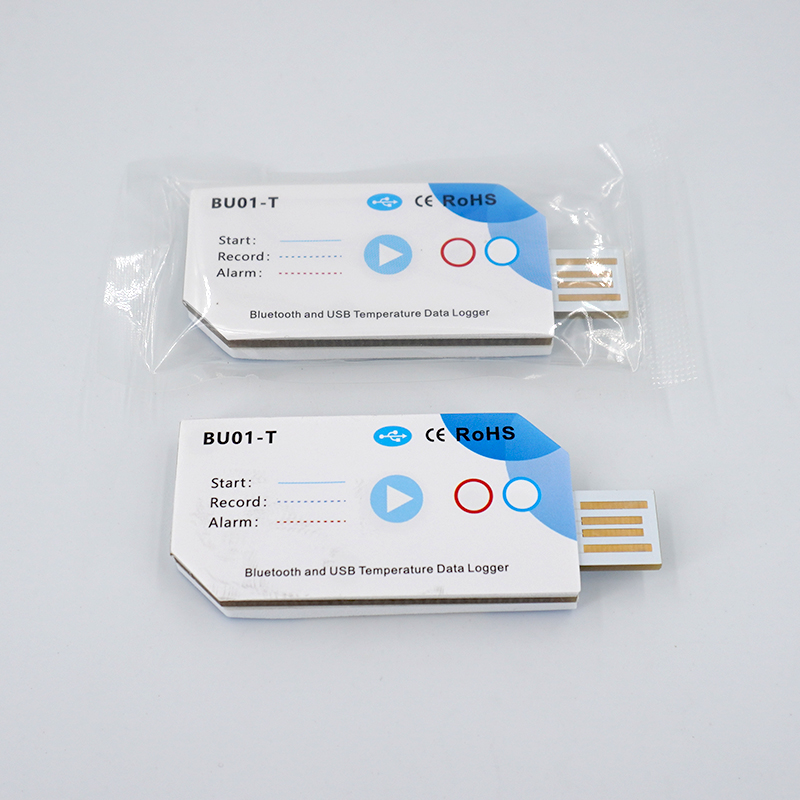

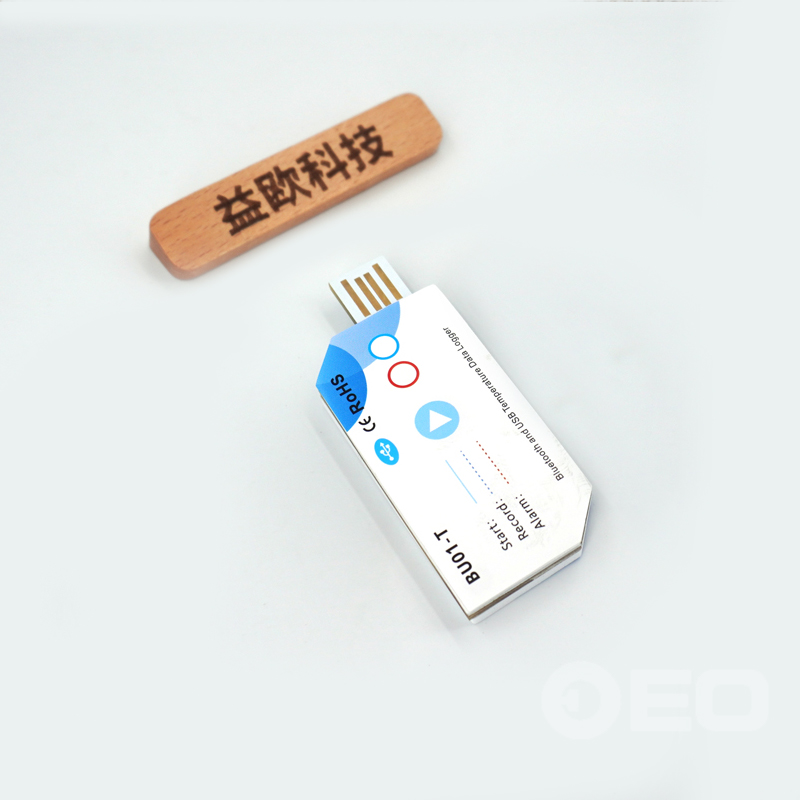

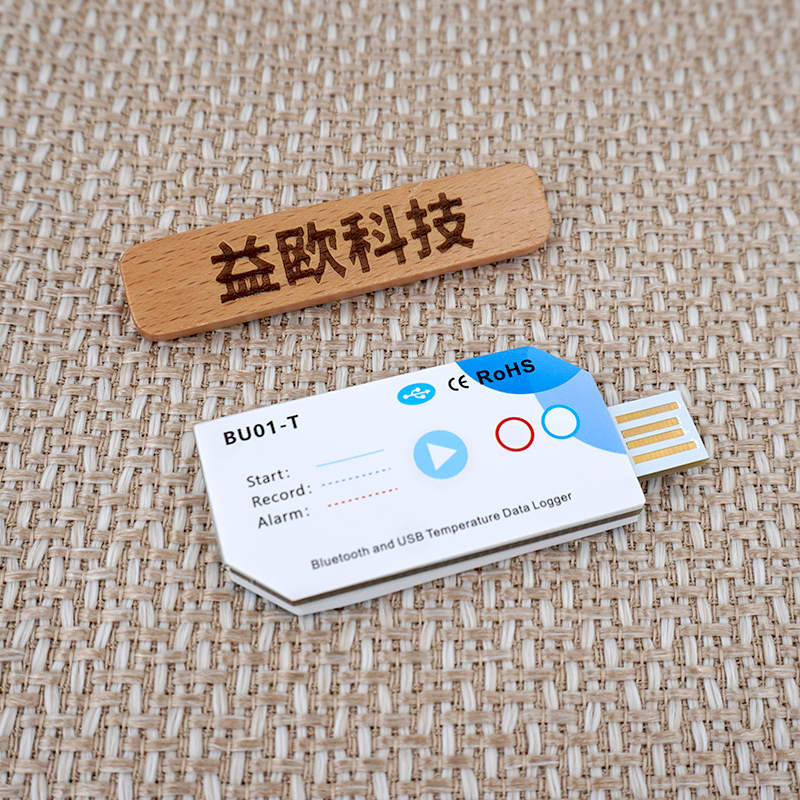

TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller.
TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller. - Image 2
TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller. - Image 3
TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller. - Image 4
TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller. - Image 5
TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller. - Image 6

TREKTAG BU01-T cold chain transportation Bluetooth USB temperature and humidity recorder tag, fruit and food temperature controller.

$20.00

Free shipping on orders over $50!

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
Category:

描述

direct reading

Simple and hassle – free, with stable and reliable measurement.
Reading is straightforward. There’s no need to install software. Once the recording is complete, simply plug the device into a computer to directly access the PDF data report.

configuration parameters

Bluetooth connection
  1. Press the function button once to enable Bluetooth broadcasting. Search for and select the corresponding product ID in the APP, or scan the ID on the back of the product to connect.
  2. Enter the configuration parameters and confirm the configuration in the APP.
Power – On
Press and hold the button for 5 seconds until the red and blue lights turn on simultaneously, indicating a successful power – on.
Read data report
Method 1: After connection, open the connection – reading interface in the APP, select the product ID or scan the product ID code to view and share the data report.
Method 2: Plug the product into the USB port of a computer and view the stored data report in the file disk generated by the product.

Bluetooth USB temperature (humidity) recorder and status description



Status Operation Indicator Lights Device Status
Not Powered – on Short – press the button Off Bluetooth broadcasts for 90s
Short – press the button 3 times Red and blue lights flash once Bluetooth broadcasts for 90s
Long – press the button for 5s Red and blue lights stay on for 3s The device starts, and Bluetooth broadcasts every 1s
Powered – on Button press is ineffective Blue light flashes twice every 2s with an alarm, red light flashes twice every 2s Within 60 minutes of startup
Short – press the button once Blue light flashes twice every 2s for 30s, red light flashes twice every 2s with an alarm Records a MARK point
Insert USB into the computer Blue light flashes continuously once, red light status remains unchanged Generates a report
The device’s memory is full Red light flashes continuously once Stops recording



Note: When the data records reach 32,000 entries, the product automatically stops recording.

Explanation of Configuration Parameters



Parameter Explanation
Sampling Interval The time interval between the product’s collection and recording of a set of data
Acquisition Delay The waiting time from the product’s startup until it begins to save data
Temperature Alarm Upper (Lower) Limit A temperature alarm is triggered when the set temperature is exceeded
Humidity Alarm Upper (Lower) Limit A humidity alarm is triggered when the set humidity is exceeded
Alarm Type Single The product records the duration of continuous over – temperature events only once
Cumulative The product accumulates the duration of all over – temperature events
Alarm Delay When the temperature enters the over – temperature range, an alarm is only triggered when the over – temperature duration exceeds the alarm delay time
Activation Mode Software Activation The product starts immediately after configuration
Button Activation The product starts after the button is long – pressed for 5 seconds
Activation Time The startup time of the product in software activation mode

Additional information

brand

TrekTag
Model

BU01-T
Usage Method

Single – use
Temperature Measurement Range

-30°C — 70°C (-22°F — 158°F)
Temperature Measurement Accuracy

0.5°C (1°C when beyond 0°C – 60°C)
0.9°F (1.8°F when beyond 32°F – 140°F)
Resolution

0.1°C
Humidity Range

0 – 99%RH (Temperature and Humidity Version)
Humidity Accuracy

±3%RH (Temperature and Humidity Version)
Data Recording Capacity

32,000 records
Shelf Life / Battery

1 year / 3.0v Button Battery (CR2450)
Recording Interval

1 – 255 minutes, configurable
Battery Life

180 days
Communication Method

USB2.0 (for computers), Bluetooth (for mobile APP)
Activation Method

Manual button press / software timer
Shutdown Method

Stop when the count is full
Product Dimensions

73 mm x 30 mm x 7 mm (L x W x H)
Product Weight

Approximately 16g
Protection Level

IP67
Accuracy Calibration Method

Nvlap NIST (Optional)
